高精度,低噪音, 低温漂, 模拟差分输出,TMR线性磁传感器芯片

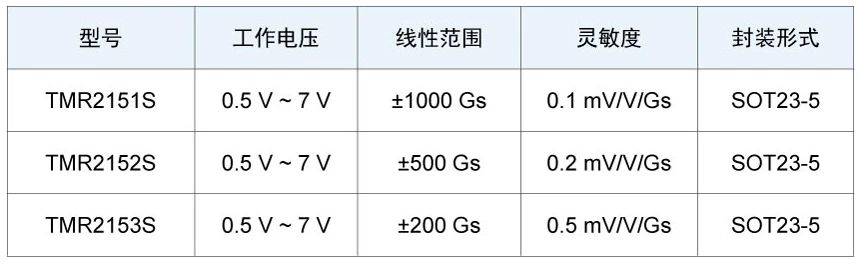

TMR215x系列产品选型表
![](https://www.sensorshenzhen.com/wp-content/uploads/2024/05/微信图片_20240531152653.jpg)
多维科技TMR215x系列线性磁场传感器芯片采用了SOT23-5封装,较于线性霍尔传感器,拥有卓越的温度性能,更高的灵敏度,更低的本底噪音和模拟差分输出。TMR215x系列线性磁场传感器芯片适用于电流传感器、位置传感器、磁力计等领域。
![](https://www.sensorshenzhen.com/wp-content/uploads/2024/05/微信图片_20240531152659.jpg)

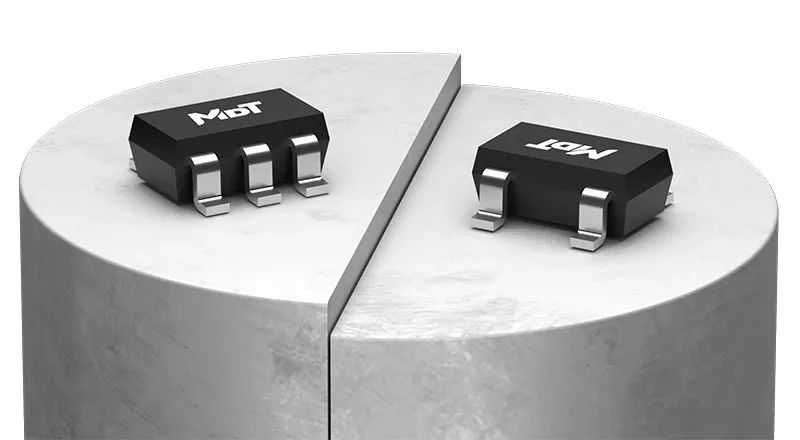

图1:TMR215x系列SOT23-5封装
![](https://www.sensorshenzhen.com/wp-content/uploads/2024/05/微信图片_20240531152704.jpg)

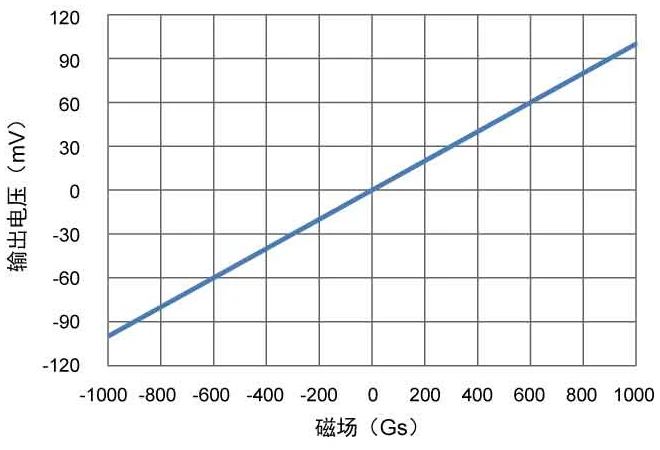

图2:TMR2151 ±1000 Gs 输出曲线
![](https://www.sensorshenzhen.com/wp-content/uploads/2024/05/微信图片_20240531152715.jpg)

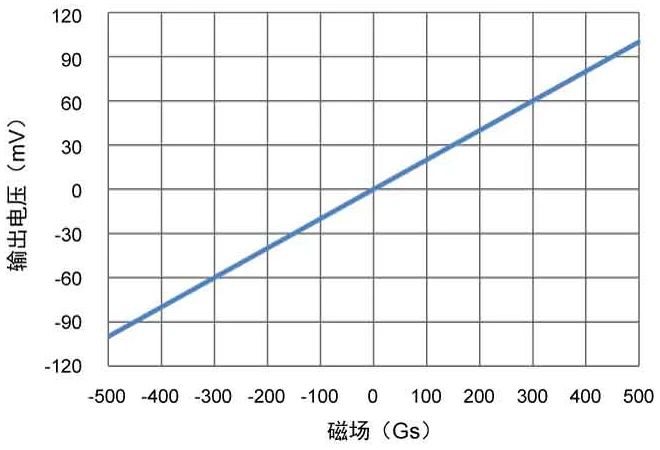

图3:TMR2152 ±500 Gs 输出曲线
![](https://www.sensorshenzhen.com/wp-content/uploads/2024/05/微信图片_20240531152724.jpg)

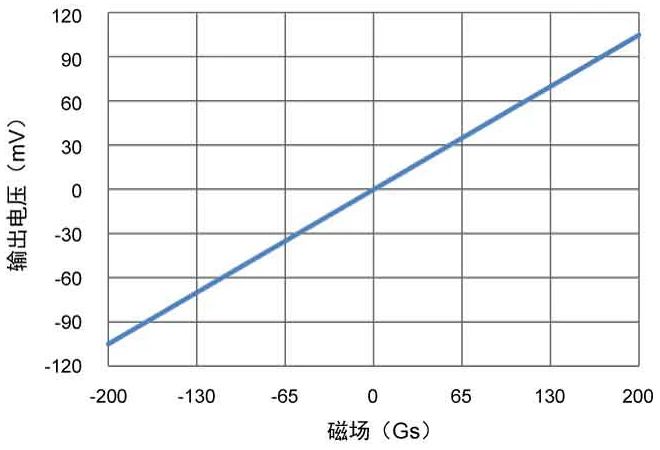

图4:TMR2153 ±200 Gs 输出曲线
![](https://www.sensorshenzhen.com/wp-content/uploads/2024/05/微信图片_20240531152728.jpg)

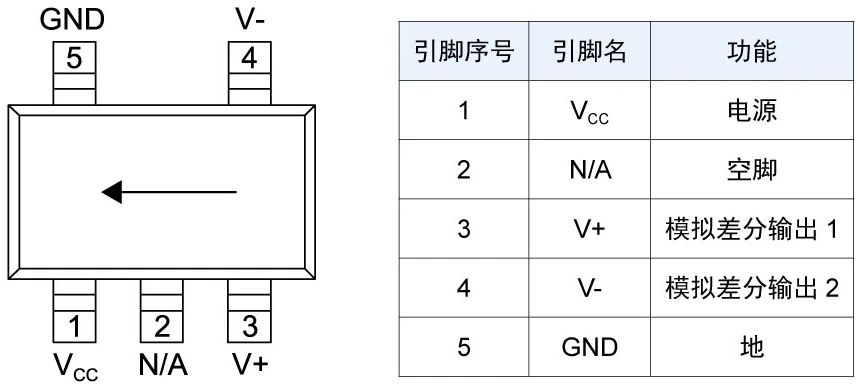

图5:TMR215x引脚定义和敏感方向

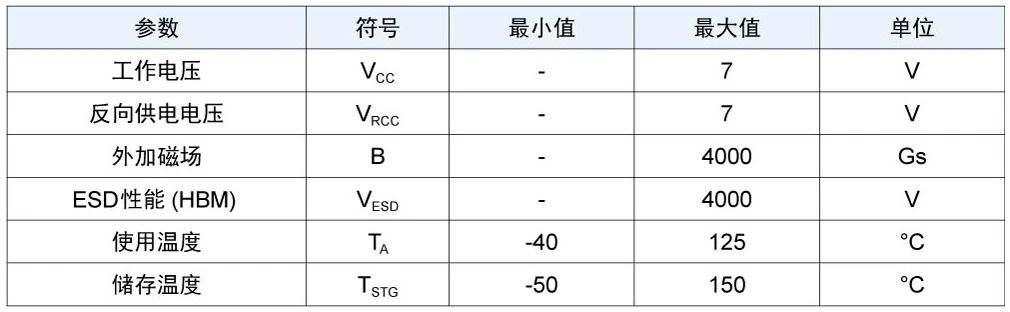

TMR215x电磁参数
![](https://www.sensorshenzhen.com/wp-content/uploads/2024/05/微信图片_20240531152736.jpg)

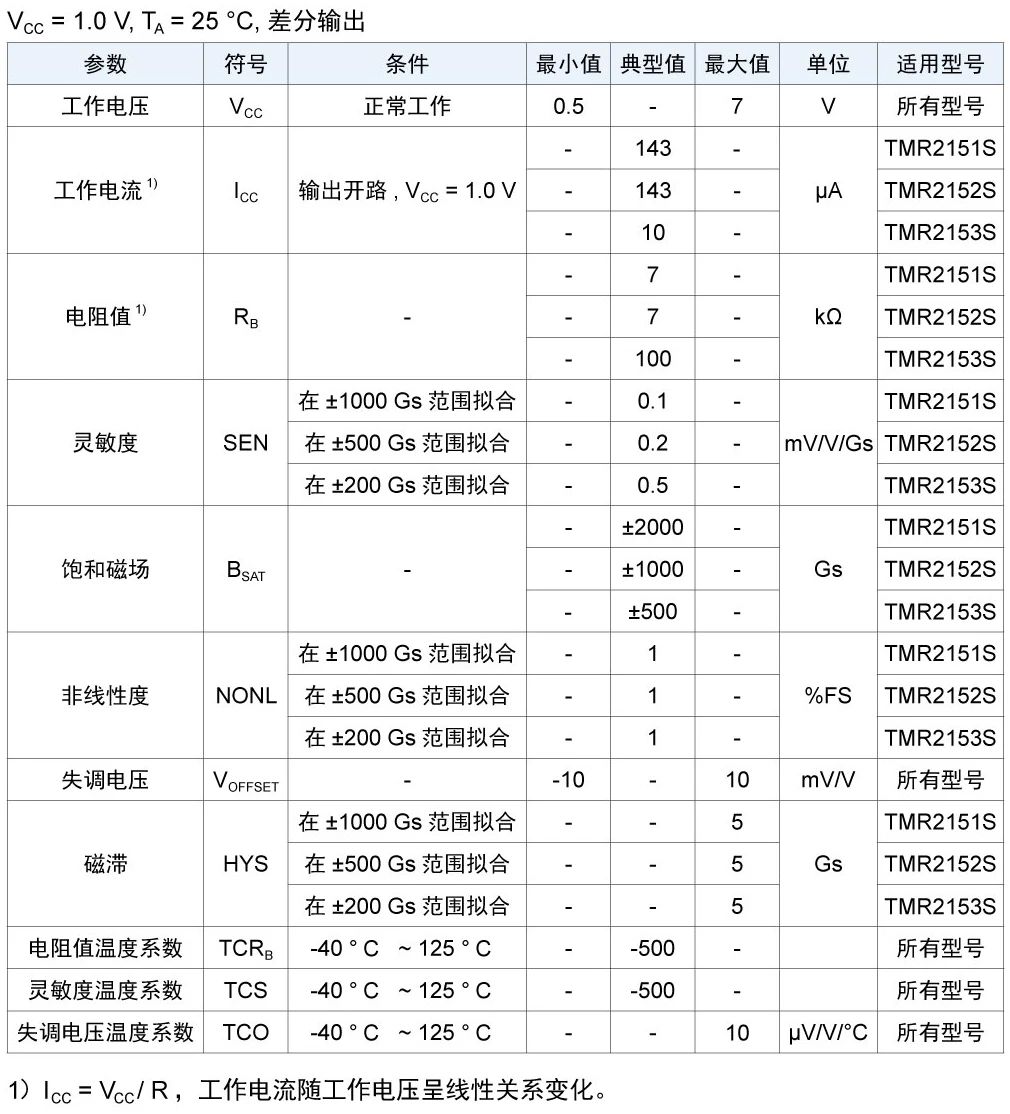

TMR215x电性能参数
![](https://www.sensorshenzhen.com/wp-content/uploads/2024/05/微信图片_20240531152740.jpg)
![](https://www.sensorshenzhen.com/wp-content/uploads/2024/05/微信图片_20240531152743.jpg)

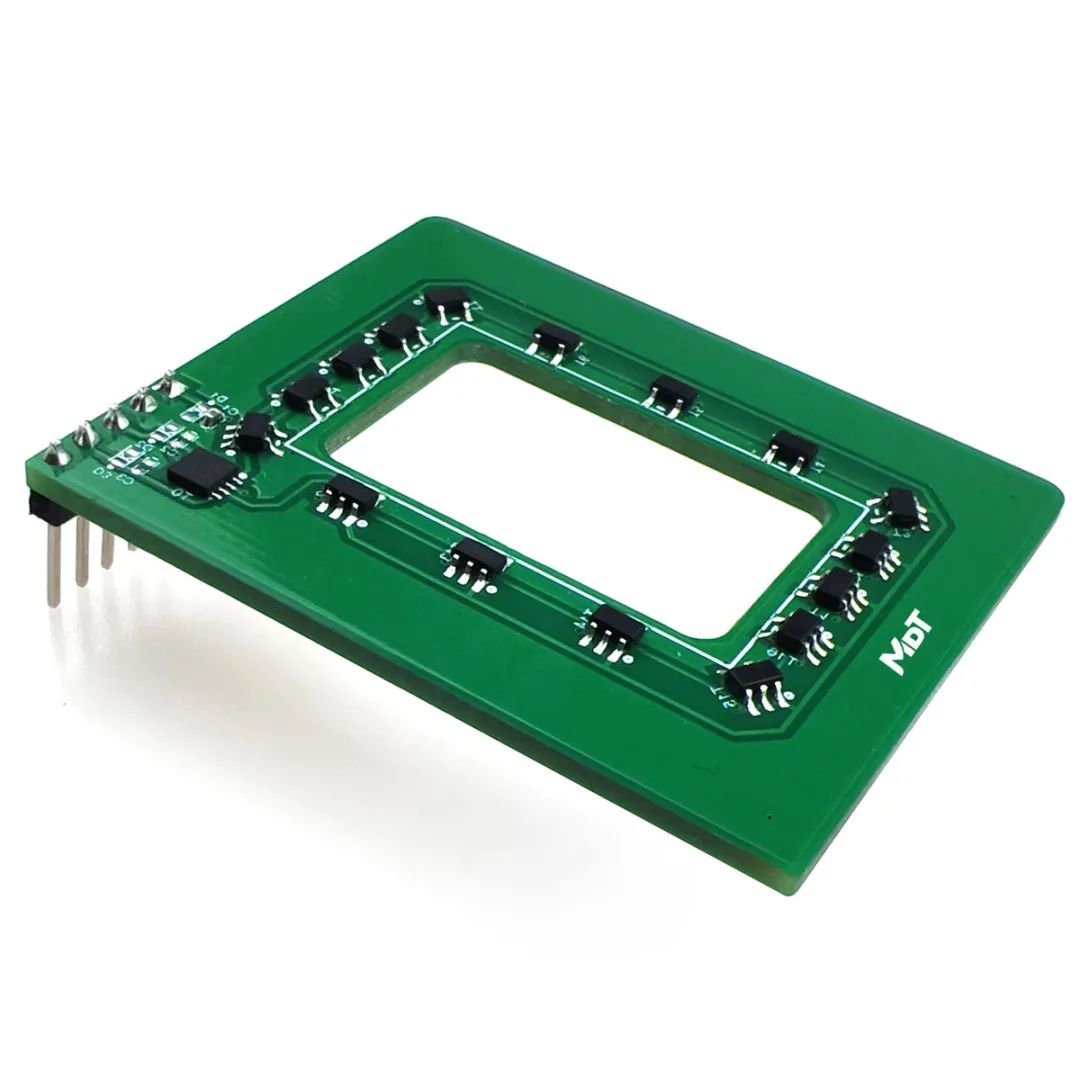

TMR215x典型应用演示板
